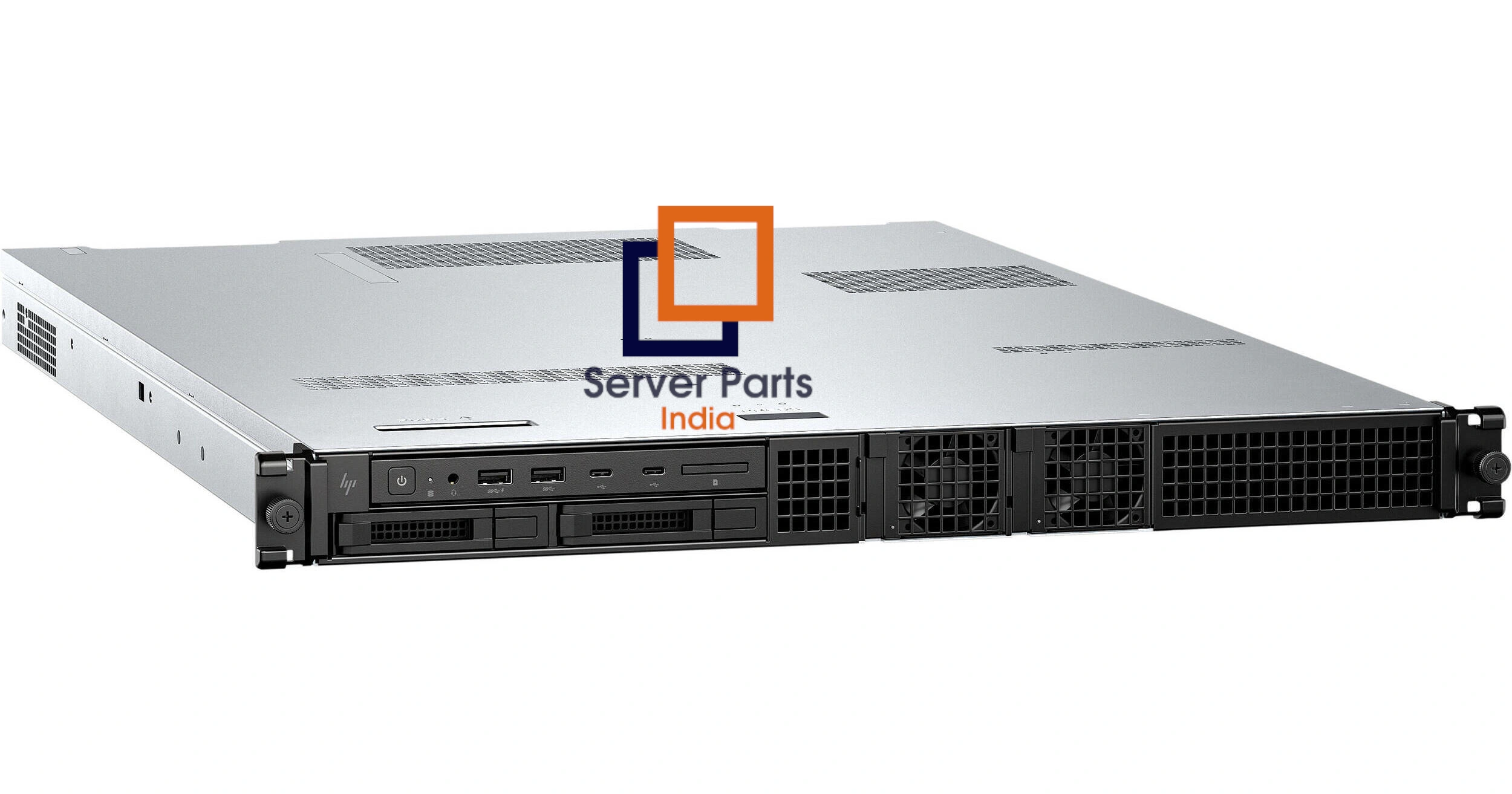

HP Z4 Rack G5 Workstation

The HP Z4 Rack G5 Workstation is a high-performance, enterprise-grade rack workstation designed for compute-intensive workloads such as 3D rendering, CAD/CAM, AI development, data science, simulation, and virtualization. Powered by Intel Xeon W-Series processors and professional-grade NVIDIA RTX GPUs, the Z4 Rack G5 delivers exceptional reliability, scalability, and security for modern business environments.

Built for data centers and rack deployments, this workstation supports DDR5 ECC memory, NVMe Gen4 SSDs, and advanced PCIe expansion, ensuring fast processing and low latency. With HP Wolf Security, remote manageability, and ISV certifications, the HP Z4 Rack G5 is ideal for enterprises, studios, engineering firms, and research organizations seeking powerful rack-mounted compute solutions.

Key Features :

โ€ข Intel Xeon W-Series processor for high-performance workloads
โ€ข DDR5 ECC memory for reliability and speed
โ€ข NVIDIA RTX professional GPU support
โ€ข Rack-optimized design for data center deployment
โ€ข NVMe Gen4 SSD support for fast storage
โ€ข PCIe Gen5/Gen4 expansion capability
โ€ข HP Wolf Security with TPM 2.0
โ€ข Ideal for AI, CAD, 3D rendering, and simulation workloads

At Server Parts India, we provide genuine HP Z-Series workstations, upgrade options, memory, storage, GPUs, and replacement parts with reliable support and fast delivery across India.ย Find us on Google.

  • โœ… 100% Tested
  • ๐Ÿ› ๏ธ Warranty Included
  • ๐Ÿ”’ Secure Data Wipe
  • ๐Ÿš€ Ready to Deploy
  • ๐Ÿข Enterprise Grade Hardware
  • ๐Ÿ‡ฎ๐Ÿ‡ณ Trusted Seller in India
  • ๐Ÿ’ฐ Cost-Effective Solution

In Stock

Compare
Form Factor

1U Rack Mount Workstation

Processor Options

Intel Xeon W5-2465X 16C 200W CPU

Socket

Single Socket

Max CPU Cores

Up to 24 Cores (CPU Dependent)

Chipset

Intel W790 Chipset

Memory Slot

Up to 8 DIMM Slots

Memory Capacity

128GB (2x64GB)DDR5 4800 DIMM ECC REG Mem

Drive Bays

External: Two 2.5" M.2
Internal: Two 2.5" M.2 or one 3.5" SATA

Storage

1TB PCIe 2280 TLC M.2 SSD

Graphics

NVIDIA RTX A4000 16GB 4DP GFX

Ports

Front:
4 USB Type-A 5Gbps signaling rate (1 charging)
1 headset connector

Rear:
2 USB Type-A 5Gbps signaling rate
1 RJ-45

Audio

Realtek ALC3205-CG

Power Supply

Two 675 W internal redundant power supply, up to 90% efficiency, active PFC

Warranty

1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair.

Expansion Slots

2 M.2 PCIe 4 x4;
1 PCIe 5 x16 mechanical (x8 electrical);
1 PCIe 5 x8 mechanical (x8 electrical);
1 PCIe 5 x16 mechanical (x8 or x16 electrical)

The HP Z4 Rack G5 Workstation is a high-performance, enterprise-grade rack workstation designed for compute-intensive workloads such as 3D rendering, CAD/CAM, AI development, data science, simulation, and virtualization. Powered by Intel Xeon W-Series processors and professional-grade NVIDIA RTX GPUs, the Z4 Rack G5 delivers exceptional reliability, scalability, and security for modern business environments.

Built for data centers and rack deployments, this workstation supports DDR5 ECC memory, NVMe Gen4 SSDs, and advanced PCIe expansion, ensuring fast processing and low latency. With HP Wolf Security, remote manageability, and ISV certifications, the HP Z4 Rack G5 is ideal for enterprises, studios, engineering firms, and research organizations seeking powerful rack-mounted compute solutions.

Technical Specifications – HP Z4 Rack G5 Workstation :

Form Factor : Rack-Mount Workstation
Processor Options : Intel Xeon W-Series Processors
CPU Socket : Single Socket
Max CPU Cores : Up to 24 Cores (CPU Dependent)
Chipset : Intel W790 Chipset
Memory Type : DDR5 ECC Registered Memory
Memory Slots : Up to 8 DIMM Slots
Maximum Memory Capacity : Up to 512GB DDR5 ECC
Memory Speed : Up to 4800 MT/s (CPU Dependent)
Storage Options : NVMe Gen4 SSD / SATA SSD / HDD
Drive Bays : Multiple internal NVMe and SATA bays
RAID Support : Software RAID / Optional Hardware RAID
Graphics Support : NVIDIA RTX Professional GPUs
PCIe Expansion : PCIe Gen5 & Gen4 Expansion Slots
Network Controller : Integrated Gigabit Ethernet (Optional 10GbE)
Power Supply : High-Efficiency Redundant PSU Options
Security Features : HP Wolf Security, TPM 2.0, Secure Boot
Management : Remote Management Support
Operating Systems Supported : Windows 11 Pro, Windows 10 Pro, Linux
Use Case : AI, CAD, 3D Rendering, Simulation, Data Science, Virtualization
Warranty : Standard HP Warranty
